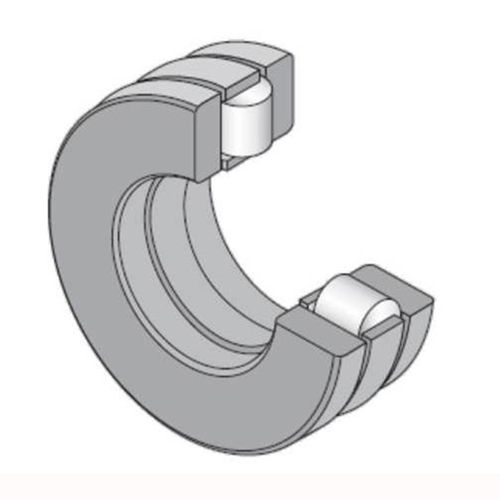

Rolamento de encosto de rolos cilíndricos 81104T2

de agulhascom gaiolapara avião comercial

Marca - NTN d - Bore diameter of support washer IR - WS - 20 mm D - Outside diameter of support washer OR - GS - 35 mm d1 - External diameter of support washer IR - WS - 35 mm D1 - Bore diameter bearing washer OR - GS - 21 mm T - Thrust bearing height - 10 mm Dw - Rolling element diameter - 4,5 mm Dc1 - Roller cage bore diameter - 20 mm Dc - Roller cage outer diameter - 35 mm rs - Min fillet radius - 0,3 mm Cage assembly reference - K81104T2 Bearing ring (inner ring) WS - WS81104 Bearing ring (outer ring) GS - GS81104 Ea - Rollers reference outer diameter - 32,3 mm Eb - Rollers reference inner diameter - 22,4 mm Peso - 0,04 kg Cage assembly mass - 0,012 kg Bearing ring (inner ring) WS mass - 0,014 kg Bearing ring (outer ring) GS mass - 0,014 kg
