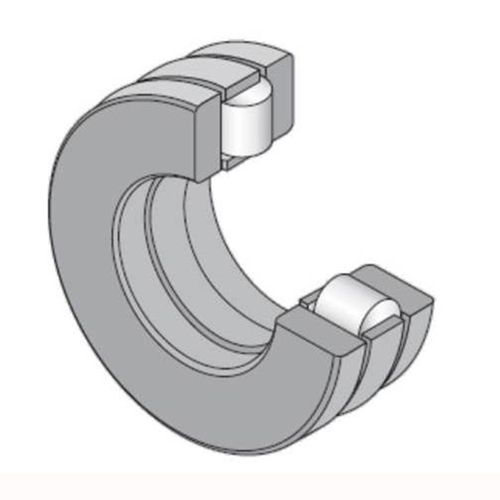

Rolamento de encosto de rolos cilíndricos 81102T2

de agulhascom gaiolapara avião comercial

Marca - NTN d - Bore diameter of support washer IR - WS - 15 mm D - Outside diameter of support washer OR - GS - 28 mm d1 - External diameter of support washer IR - WS - 28 mm D1 - Bore diameter bearing washer OR - GS - 16 mm T - Thrust bearing height - 9 mm Dw - Rolling element diameter - 3,5 mm Dc1 - Roller cage bore diameter - 15 mm Dc - Roller cage outer diameter - 28 mm rs - Min fillet radius - 0,3 mm Cage assembly reference - K81102T2 Bearing ring (inner ring) WS - WS81102 Bearing ring (outer ring) GS - GS81102 Ea - Rollers reference outer diameter - 25 mm Eb - Rollers reference inner diameter - 17,2 mm Peso - 0,026 kg Cage assembly mass - 0,006 kg Bearing ring (inner ring) WS mass - 0,01 kg Bearing ring (outer ring) GS mass - 0,01 kg
