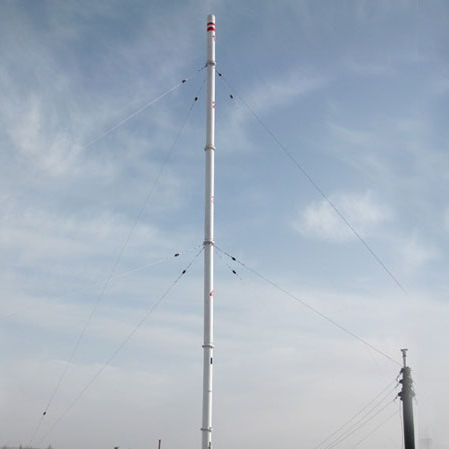

Ground antenna HT118-156F

VHFomnidirectional

HT118-156F VHF Omnidirectional Co-pole Antenna is used when ground USW radios run in common address. It is especially designed to save the space, improve the isolation between the antennas, enhance the EM environment, and solve the problem of crosstalk between the radios. Technical Data Main characteristics of individual antennas Frequency range - 108MHz ～ 156MHz Power-handling capacity - 400 W CW Input impedance - 50 Ω VSWR - ≤2.0 Gain - 2.0 dBi Radiation Pattern - horizontal, omni-directional Polarization - vertical Dimensions - Ф170 mm×1100 mm(D×H)
