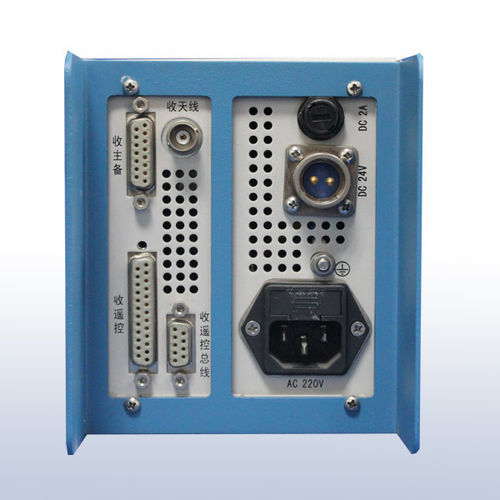

VHF video receiver HHKJ2000R

for aircraft

HHKJ2000R Receiver is the improved unit of downsized HHKJ2000 VHF Receiver. It keeps the function and characteristics of the old type. However, the width of its case is modified into one quarter of the original (19”/4). The unit is characterized by compact structure, excellent performance and easy to install. Technical Data Frequency range - 108.000MHz ～ 156.000MHz Channel spacing - 25kHz Modulation type - AM（A3E） Sensitivity - ≤1.5μV Image frequency rejection - ≥80dB Intermediate frequency rejection - ≥100dB Intermodulation response rejection - ≥70dB Desensitization rejection - ≥70dB Oscillator reradiation - ≤-90dBm Selectivity - ±7.5kHz/6dB; ±18kHz/60dB;±25kHz/80dB AF response - -3 dB/+1 dB（300 Hz ～ 3.4 kHz, refer ～ 1kHz） Audio distortion - ≤5% RF AGC - ≤3 dB Squelch setting range - （S+N）/N,8 dB ～ 15 dB Squelch response time - ≤30ms Environmental applicability Operating temperature - -20 ℃ ～ +55 ℃ Storage temperature - -30 ℃ ～ +70 ℃ Relative humidity - 95%,（+40 ℃±2 ℃） Dimensions - 111 mm × 130 mm × 496 mm Weight - ≤6 kg
