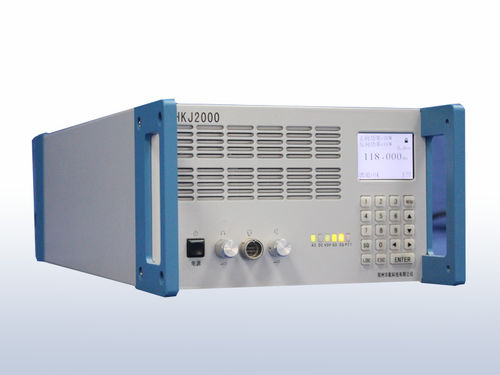

Radio transceiver HHKJ2000T

VHFfor aircraft

HHKJ2000T Transceiver represents the latest generation of VHF air-ground communication equipment designed independently by our company. Possible applications range from civil aviation air-ground communication to air traffic control system. The transceiver is an important unit in the multi-transmit and multi-receive communication command system apart from VHF filter, antenna spliter, antenna combiner, and VHF co-pole antenna. Technical Data General characteristics Frequency range - 118 MHz ～ 144 MHz（118 MHz ～ 156 MHz optional） Frequency error - ±1×10-6 Channel spacing - 25 kHz/12.5 kHz /8.33 kHz Modulation type - AM（A3E） Work mode - semi-duplex Antenna connector - N female，50Ω，common TX/RX antenna； BNC female，50Ω，separate RX antenna Power supply - AC 220 V±22 V，50 Hz±5 Hz； DC 24 V±2.4 V Operating temperature - -20 ℃ ～ +55 ℃ Storage temperature - -30 ℃ ～ +70 ℃ Relative humidity - 95%， at +40 ℃±2 ℃ Dimensions - 482 mm×133 mm×536 mm（with handles） Weightn - 18 kg Receiver Receive sensitivity - ≤1.5 μV Selectivity - ±7.5 kHz/6 dB，±25 kHz/80 dB Squelch - setting range （S+N）/N 8 dB ～ 15 dB Image frequency rejection - ≥80 dB Intermediate frequency rejection - ≥100 dB Adjacent channel rejection - ≥75 dB Intermodulation response rejection - ≥70 dB Oscillator reradiation - ≤-90 dBm Desensitization rejection - ≥80 dB AF response - -3 dB ～ +1 dB
