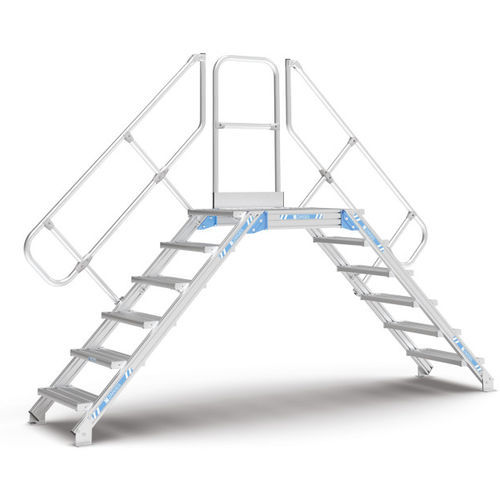

Stationary or mobile platform for bridging obstacles or as a work platform with access from both sides. Large-area platform with guardrail for safe and ergonomic working at heights.
Selection of tread widths 600 mm, 800 mm or 1000 mm.
Serrated aluminium (R10) step and platform surfaces as standard. Also available as steel open grid (R12) and steel perforated plate (R13) for extra non-slip properties.
Individually adjustable platform lengths.
Optionally with chassis for mobile applications.
Individual guardrail configuration on the platform, optionally with swing door or pole barrier.
Maximum flexibility with optional handrails and guardrails which can be removed without tools.
Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
Different angles of inclination, 45° for comfortable access, 60° for confined spaces.
Hints and special features
We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
Standard applied: DIN EN ISO 14 122.
Load capacity - max. 300 kg
Platform length - 600 mm
Tread width - 600 mm
Standards - EN ISO 14122
load-capacity-step-td - 150 kg
Inclination - 45 °
