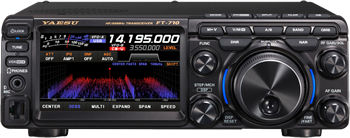

Radio transceiver FT-710

HFfor aircraft

- HF/50MHz band 100W Compact SDR Transceiver - SDR circuit configuration emphasizes Receiving Performance which is enabled by the same high-resolution A/D converter and FPGA used in YAESU high-end SDR transceivers. - Powerful RF Front-End and Low Noise Oscillator System enable Phenomenal Multi-Signal Receiving Characteristics* ·RMDR:113dB+ ·BDR:127dB+ ·3rd IMDR:102dB+ ·TX Phase Noise: -143dBc/Hz *Multi-Signal Receiving Characteristic: 14MHz band/2kHz separation *TX Phase Noise: 100W, CW mode - Band-Pass-Filters dedicated for the amateur bands to eliminate out-of-band unwanted signals - Built-in High-speed Automatic antenna tuner with 100 channel memory - Effective QRM rejection afforded by Dual-core 32-bit high speed floating decimal point DSP - AESS (Acoustic Enhanced Speaker System) with the supplied SP-40 speaker to create High-fidelity audio output - High Resolution 4.3-inch TFT Color Touch Panel Display - 3DSS, real-time 3-Dimensional Spectrum Stream presentation - VMI (VFO Mode Indictor) shows the current operating mode (VFO-A, VFO-B, Memory Mode and Clarifier/Split operation) at a glance - “PRESET” Mode functions most suitable for FT8 operation - Equipped with the External Display terminal (DVI-D) - Two (2) USB Ports (Type-A and Type-B) - SD Memory Card Slot - Support the FC-40 Auto Antenna Tuner - Remote Operation with Network Remote Control System (Available in the near future)
