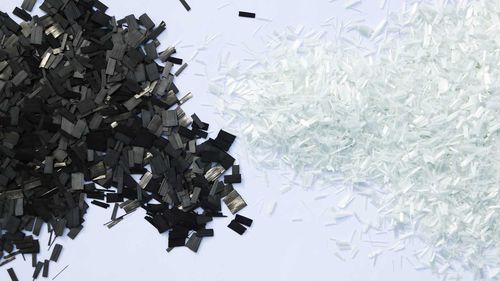

Fiberglass composite XEBRID 1 series

carbon fiberthermoplastic resinfor the aerospace industry

Mechanical Properties Tensile Modulus 1 mm/min ISO 527 MPa 12000 Tensile Strength at break 5 mm/min ISO 527 MPa 180 Tensile Elongation at break 5 mm/min ISO 527 % 2,2 Flexural Modulus 2 mm/min ISO 178 MPa 9500 Flexural Strength 2 mm/min ISO 178 MPa 260 Flexural Stress at 3,5% strain 2 mm/min ISO 178 MPa Flexural Strain at break 2 mm/min ISO 178 % 3,3 Deflection at break mm Deflection at 3,5% strain mm Notched Izod Impact Strength 23 °C ; 50 % RH ISO 180 kJ/m2 6 Unnotched Izod Impact Strength 23 °C ; 50 % RH ISO 180 kJ/m2 38 Notched Izod Impact Strength -30 °C ISO 180 kJ/m2 5 Unnotched Izod Impact Strength -30 °C ISO 180 kJ/m2 32
