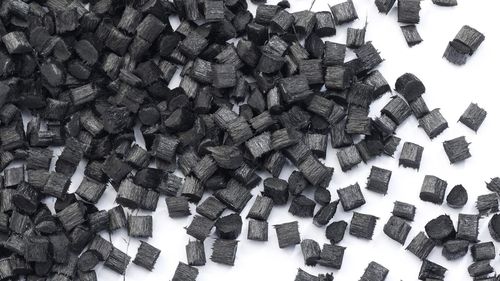

Carbon fiber composite XECARB® 15 series

thermoplastic resinfor the aerospace industrydensity

Mechanical Properties Tensile Modulus 1 mm/min ISO 527 MPa 21000 Tensile Strength at break 5 mm/min ISO 527 MPa 205 Tensile Elongation at break 5 mm/min ISO 527 % 1,2 Flexural Modulus 2 mm/min ISO 178 MPa 15000 Flexural Strength 2 mm/min ISO 178 MPa 250 Flexural Stress at 3,5% strain 2 mm/min ISO 178 MPa Flexural Strain at break 2 mm/min ISO 178 % 1,8 Deflection at break mm Deflection at 3,5% strain mm Notched Izod Impact Strength 23 °C ; 50 % RH ISO 180 kJ/m2 2 Unnotched Izod Impact Strength 23 °C ; 50 % RH ISO 180 kJ/m2 17 Notched Izod Impact Strength -30 °C ISO 180 kJ/m2 Unnotched Izod Impact Strength -30 °C ISO 180 kJ/m2
