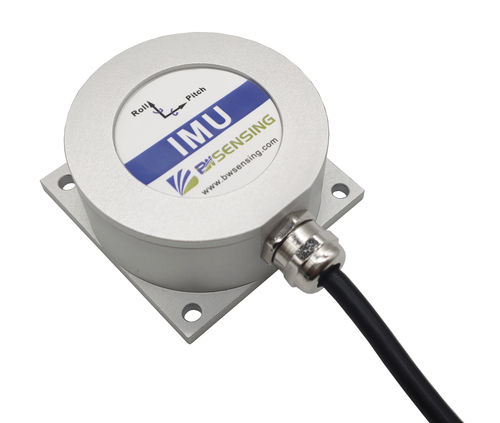

IMU inertial system IMU227

Low-cost Inertial Measurement Unit IMU127 Product Introduction： BW-IMU227 is a low cost inertial measurement unit measures the attitude parameters ot the motion carrier. Technical Specifications Accuracy: 1° Resolution: 0.01° Tilt margin: Pitch ±90º, Roll ±180º Supply Voltage: 9-35V DC Zero instability: 50 °/h Bias stability: ±4 mg Dimension: L60 x W59 x H29（mm） Vibration resistance: 2000g If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding. BW-IMU227 uses highly reliable MEMS accelerometers and gyroscopes，and ensure measurement accuracy through algorithms, meanwhile, the seal design and strict process ensure that the dynamic parameters of the carrier such as the angular velocity、acceleration and attitude can be accurately measured under harsh conditions. Through various compensations such as nonlinear compensation, quadrature compensation, temperature compensation and drift compensation, the error source of BW-IMU227 can be greatly eliminated, and the product accuracy level can be improved. The BW-IMU227 is equipped with digital interface that can be easily integrated into the user's system.
