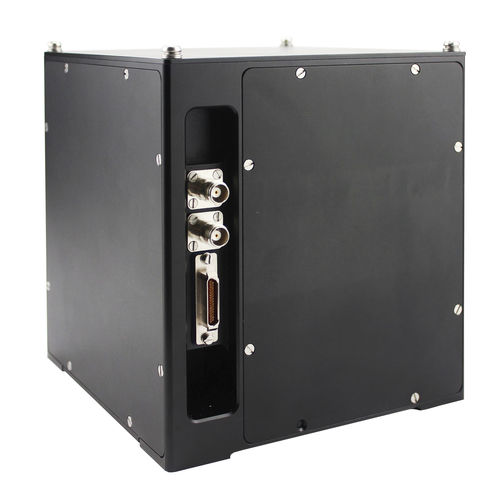

IMU inertial system IMU1400

Fiber optic gyro Inertial Measurement Unit IMU1400 Product Introduction： BW-IMU1400 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and acceleration velocity of the moving carrier. The acceleration and angular velocity deviations are estimated by a 6-state Kalman Technical Specifications Input voltage（Vdc）: +9~+36 Power（W）: 20 Data output: RS-422 Size（mm）: ≤178×184×229.5 Weight（kg）: 7 Connector: J30JA1-31TJ/Y11P-1210ZK10 BW-IMU1400 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and accélération velocity of the moving carrier. The accélération and angular velocity déviations are estimated by a 6-state Kalman filter with appropriate gain, even in extremely complex applications and dynamics environment,the product can also reliably detect and conduct multiple degrees of freedom.So it is suitable for inertial attitude measurement in motion or vibration. BW-IMU1400 uses highly reliable MEMS accelerometers and gyroscopes,and ensure measurement accuracy through algorithms,meanwhile,the seal design and strict process ensure that the dynamic parameters of the carrier such as the angular velocity,accélération and attitude can be accurately measured under harsh conditions.Through various compensations such as nonlinear compensation .quadrature compensation and drift compensation,the error source of BW-IMU1400 can be greatly eliminated.and the product accuracy level can be improved. The BW-IMU1400 is equipped with digital interface that can be easily integrated into the user' s System.
