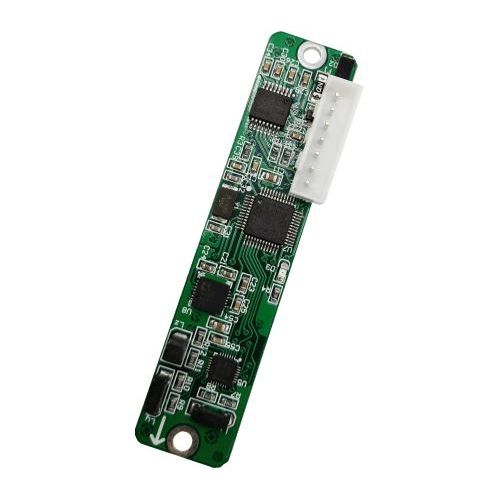

Aircraft electronic compass HEC360

3D

All attitude three dimensional electronic compassHEC360 Product Introduction： The precise attitude of the HEC360 output vector can be used in systems with full attitude rotation. This product with hard and soft magnetic and tilt compensation,have high precision measurement of output value after compass calibration. Technical Specifications Accuracy: 0.3°~0.5°(RMS) Pitch Accuracy：0.1º Roll Accuracy：0.1º Voltage：5V DC Output Mode：RS232/RS485/TTL Optional, Modbus Optional Dimension: L72 x W16 x H12mm Protection Level: IP67 If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding The HEC360 intégrâtes a three-axis magnetic sensor that compensâtes for the tilt angle with a three-axis accelerometer when the heading is solved in real time by the central processor, providing accurate heading data in very harsh environments. The HEC360 supports RS232, RS485 and TTL level output interfaces. The output baud rate is 2400-115200, and the output angle is 0°~360°. There are two types of hexadécimal and Modbus protocols. It can be adapted to different application scénarios and can integrate the electronic compass function into various Systems very conveniently and quickly.
