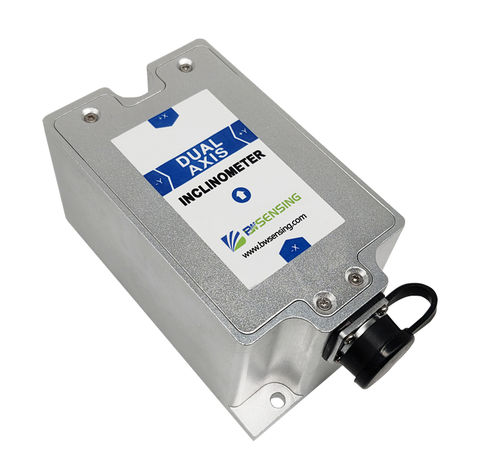

2-axis inclinometer BWS5000ERS232RS485TTL
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Output signal
- RS232, RS485, TTL
- Applications
- for aircraft
- Domain
- for the aerospace industry
- Inclination
Min.: -15 °
Max.: 15 °
- Temperature range
Min.: -40 °C
(-40 °F)Max.: 85 °C
(185 °F)
Description
is a dual-axis high-precision tilt sensor with MEMS technology and digital output launched by Bewis Sensing Technology LLC. It has a measurement range of ±15°, a maximum accuracy of 0.001°, and a temperature drift of 0.0003°/℃.
Technical Specifications
Accuracy: 0.001°
Resolution: 0.0001°
Measuring axis: X-Y
Measuring range: ±15°
Power supply DC: 10-35V
Output type: RS485/232/TTL optional
Wide operating temperature: -40℃~+85℃
Store temperature: -55℃~+100℃
Zero temperature drift: ±0.0003°/℃
Electromagnetic compatibility: According to GBT17626
Shock resistance: 2000g, 0.5ms, 3 times/axis
Weight (g): 320 (metal plug)/350 (aviation plug)
Electrostatic discharge (ESD): IEC 61000-4-2 Level IV Contact discharge 8KV, air discharge 15KV
Fast transient burst immunity: IEC 61000-4-4 IV level
Surge (impact) immunity: IEC 61000-4-5 Class IV
