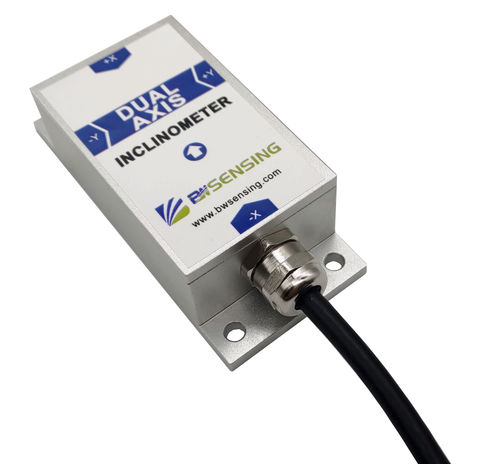

2-axis inclinometer BWN426RS232RS485TTL
Add to favorites
Compare this product
Characteristics
- Number of axes
- 2-axis
- Output signal
- RS232, RS485, TTL, digital output
- Applications
- for aircraft
- Domain
- for the aerospace industry
- Inclination
Max.: 30 °
Min.: -30 °
- Temperature range
Max.: 85 °C
(185 °F)Min.: -40 °C
(-40 °F)
Description
Digital Output Dual-axis Inclinometer BWN426
Product Introduction：
Designed by Bewis Sensing Technology LLC, BWN426 is a cost-effictive dual axis inclinometer, with MEMS technology and RS232/RS485/TTL output.
Technical Specifications
Measuring range: 0~±30° Horizontal installation ONLY
Measuring axis: Dual Axis
Accuracy: 0.02°(Max)
Resolution: 0.001°
Working temperature: -40℃~+85℃
Frequency response: 100 Hz
Shock resistance: 2000g,0.5ms,3times/axis
MTBF: ≥30000hours/time
Insulation resistance: ≥100MΩ
Weight: 150g(excludes box)
If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.
This product converts static gravity field changes into angle changes, It outputs horizontal angle values directly by digital, this product has the advantages of low cost, small température drift, simple to use, and strong résistance to external disturbances. It is an idéal option for attitude measurement in photovoltaic power (PV) , PTZ control, tower turbines monitoring and other industries.
