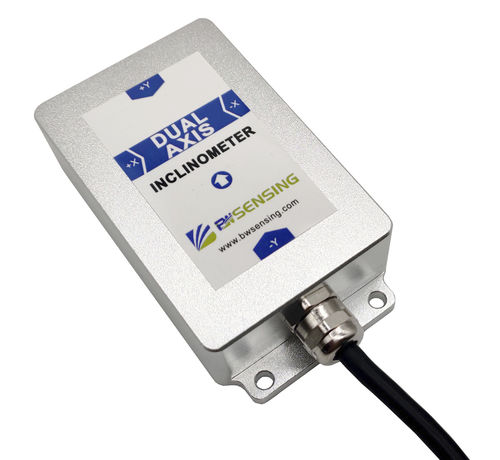

2-axis inclinometer BWS5500

digital outputfor airlinersfor the aerospace industry

High Accuracy CAN Bus Dual-Axis Inclinometer BWS5500 Product Introduction： Designed by Bewis Sensing Technology LLC, BWS5500 is a dual-axis high-accuracy inclinometer with MEMS technology and CAN output. It has a measuring range and a full-scale accuracy of 0.001° and a temperature drift of 0.0003°/℃ Technical Specifications Measuring range: ±15° Measuring axis: X-Y Accuracy: 0.001°(Max) Resolution: 0.0001° Zero temperature drift: ±0.0003°/℃ Cross axis error: 0.001 Power-on time: ＜3s Frequency response: 5~100Hz(Adjustable) Baud rate: 2400~115200 MTBF: ≥90000 hours/time Electromagnetic compatibility: according to GBT17626 Insulation resistance: ≥100MΩ Shock resistance: 2000g,0.5ms,3times/axis Weight: 350g If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding. It is a highly accurate product in the modem industry. The product uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to reduce errors caused by environmental changes. It measures the change of static gravitational field and converts it into angle change. The change directly outputs the current roll angle and pitch angle through digital mode. It is easy to install and simple to use, small in size, résistant to external electromagnetic interférence, and capable of withstanding vibration shock. It apply to military equipment, industrial automation, surveying and mapping, etc.
