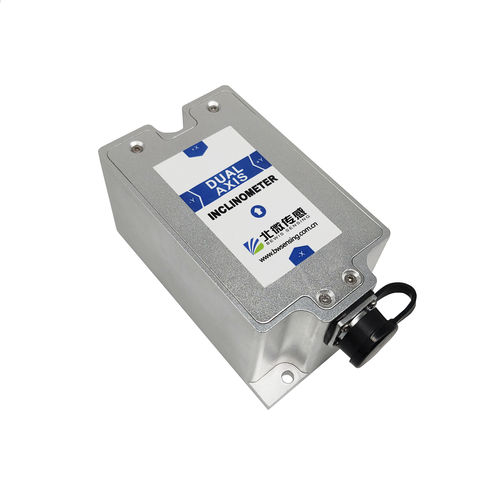

2-axis inclinometer BWS5000E

RS232RS485TTL

BWS5700E is a dual-axis high-precision, high-stability inclinometer with MEMS technology and digital output, with a surge (impact) immunity of IEC 61000-4-5 level IV launched by Bewis Sensing, with a measuring range of ± 15°, the highest accuracy is 0.001°, and the temperature drift is ±0.0003°/℃. It is currently the most accurate product in the industry. The sensor uses a high-resolution differential digital-to-analog converter with built-in automatic compensation and filtering algorithms to minimize errors caused by environmental changes. Convert the change of the static gravity field into the change of the inclination angle, and directly output the current roll angle and pitch angle through the digital method. The product is easy to install, simple to use, small in size, resistant to external electromagnetic interference, and strong in vibration and impact. It is an industrial automation, The recommended choice for inclination measurement in surveying and mapping industries! Technical index Dual axis tilt measurement High accuracy：0.001° Cross axis error: 0.001° Temperature drift: 0.0003°/℃ Wide voltage input 9-35V DC Resolution: 0.0005°
