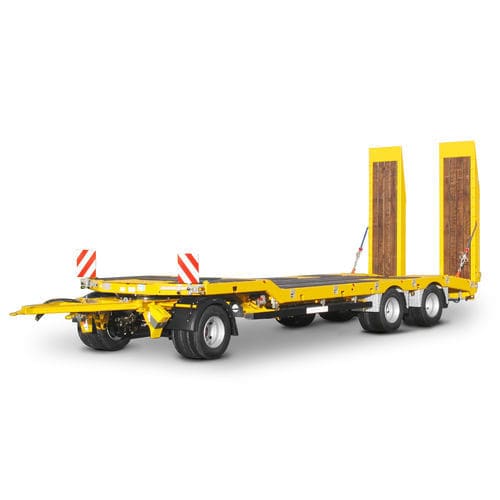

ULD trailer

3-axlewith swiveling front axlepivoting

3-axle low loader trailer with offset platform Raised platform at the front incl. offset frame, tapered corners High point loading due to narrow cross member spacing Pull-out extensions, incl. extension planks for transporting wide loads 7 pairs of recessed foldable lashing rings Central storage compartment with lockable lid on raised platform Installation of axles from well-known manufacturers such as BPW or SAF OPTIONAL: Offset drawbar with pivoting eye 40 + 50 mm OPTIONAL: 2-part loading ramps with motor-hydraulic ramp actuators OPTIONAL: Ramps with hydraulic lateral movement, operated on semitrailer OPTIONAL: Wheel recesses for transporting special vehicles OPTIONAL: Version with side walls on raised platform TYPE DESIGNATION 3-AXLE LOW LOADER TRAILER WEIGHTS Gross weight (techn.): 30 t Payload: approx. 24 t Tare weight: approx. 6 .2 t DIMENSIONS Approx. 2,100 mm raised platform at front incl. frame offset, tapered corners Approx. 5,200 mm = drop-deck platform - flat load surface Approx. 1,000 mm = rear access slope Total width: 2,550 mm or approx. 3,000 mm with extension Loading height, laden: approx. 870 mm FRAME Welded steel construction with flat front frame offset or body offset and drive-on taper at rear Without excavator shovel recess 6 pairs of mounting pockets for 100 x 50 mm tubular posts in external frame (4 in drop deck and 2 on raised platform) 5 pairs of 3 t lashing bars at bottom of external frame 7 pairs of recessed foldable 10 t lashing rings in floor (5 in drop deck and 2 on raised platform)
