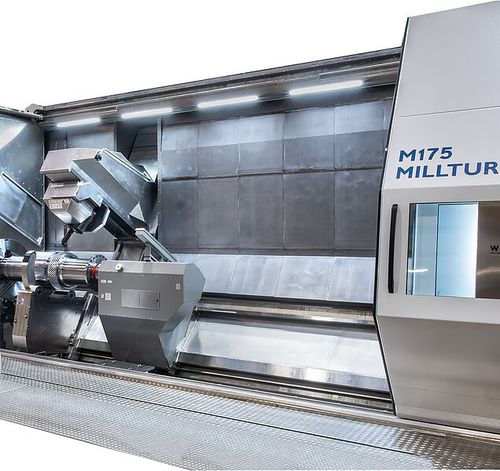

CNC milling machine M175

horizontalfor aeronautics5-axis or more

Bigger, stronger, faster - with the latest M-series product - the M175 MILLTURN - WFL is launching a new giant of complete machining. This contains significant innovations, ensures the highest precision and an advantageous versatility for customer requirements. The new turning-boring-milling unit offers a max. swing diameter of 1750mm and can accommodate up to 15.000kg heavy workpieces very stable due to the new, large-sized bed guideway for steady rest and tailstock. The turning-boring-milling unit has an X-axis travel of 162mm and a Y-axis travel of 1100mm and can therefore be used uncompromisingly and universally, e.g. for deep radial machining. Due to the large volume box structure of the turning-boring-milling unit cross slide with a very wide bed guide base and multiple arrangement of ground gliding guideways in the X- and Z-axis, the tool carrier system has a particularly high stability. This massive and powerful construction is combined with proven main and milling spindle systems, whose 113kW and 58kW drives are extremely reliable in their performance. Highlights at a glance Very stable construction Deep radial machining possible Max. workpiece weight 15.000kg Max. turning diameter 1750mm Specially configured machine on customer request Nominal center distance mm 2000/3000/5000/6500/8000/10000/12000 Swing - ø over Top slide mm 1750 Swing - ø over bed mm 1840/1810/1790/1750/1730/1700/1660 Max. torque, Turning spindle 40% duty cycle Nm 10160//14000 Max. torque, Turning spindle 100% duty cycle Nm 7300//12400 Max. spindle speed, Turning spindle min-1 800//800 Max. torque, Milling spindle 100% duty cycle Nm 500/310
