CNC milling machine M50

horizontalfor aeronautics4-axis

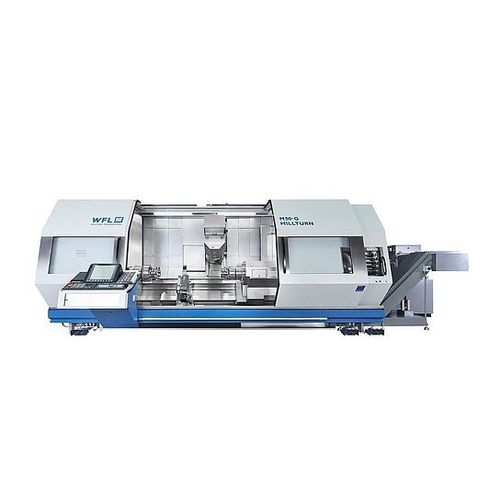

With the M50 and M50-G MILLTURN series, WFL Millturn Technologies is presenting a new generation of multifunctional turning-boring-milling centres for one-hit machining of complex chuck and shaft parts up to 670 mm swing over bed. Turning, milling, drilling, hobbing, shaping, gun drilling as well as ID machining can be performed under any angle of the tool. The interpolation of up to 5 axes makes machining of any geometrical profile possible. Highlights at a glance Wide distances between guideways for the stable accommodation of big steady rests Pick-up magazine for long tools with standard tool interface B-axis turning Workpiece transfer High-precision measuring with integrated measuring probe Nominal center distance - mm - 1000/2000/3000/4500/6000 - 1000/2000/3000/4500/6000 Swing - ø over Top slide - mm - 670 - 670 Max. Turning- ø between centers - mm - 670 - 670 Max. torque, Turning spindle 40% (100%) duty cycle - Nm - 2000(1400)/1830(1500)//3200(2320)/3600(2740) - 2000(1400)/1830(1500)//3200(2320)/3600(2740)///1830(1500) Max. spindle speed, Turning spindle - min-1 - 3300/2500//2600/2600 - 3300/2500//2600/2600///2500 Max. torque, Milling spindle 40% (100%) duty cycle - Nm - 284(233)/213(175)//480(420)/300(263) - 284(233)/213(175)//480(420)/300(263) Max. spindle speed, Milling spindle - min-1 - 9000/12000/*//5000/8000 - 9000/12000/*//5000/8000 Swiveling angle B - axis - degree - -110...+110 - -110...+110 Tailstock - Type - Mechatronic - - Tool magazine - number - 50/100/150/200//36/72/108/144 - 50/100/150/200//36/72/108/144 Control SIEMENS - Type - SINUMERIK 840D sl - SINUMERIK 840D sl
