CNC milling machine M40X

horizontalfor aeronautics4-axis

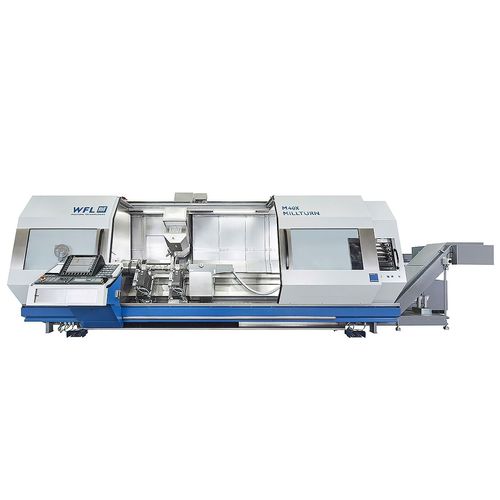

With the M40, M40-G, M40X and M40X-G MILLTURN series, WFL Millturn Technologies is presenting a new generation of multifunctional turning-boring-milling centres for one-hit machining of complex chuck and shaft parts up to 520 mm swing over bed. Beside superior output and torque values of the spindle drives, the imposing feed forces in all axes make for superb dynamics and maximum productivity. Highlights at a glance Wide distances between guideways for the stable accommodation of big steady rests Pick-up magazine for long tools with standard tool interface B-axis turning Workpiece transfer High-precision measuring with integrated measuring probe Centre distance - mm - 1000/2000/3000/4500 - 1000/2000/3000/4500 Swing diameter over top slide - mm - 520 - 520 Turning diameter max. - mm - 520 - 520 Torque max. 40% (100%) duty cycle - Nm - 630(550)/2000(1400) - 630(550)/2000(1400)//630(550) Speed max. - min-1 - 4000/3300 - 4000/3300//4000 Torque at the spindle max. 40% (100%) duty cycle - Nm - 284(233)/213(175)//480(420)/300(263) - 284(233)/213(175)//480(420)/300(263) Speed max. - min-1 - 9000/12000/*//5000/8000 - 9000/12000/*//5000/8000 B-axis swivelling range - degree - -110...+110 - -110...+110 Tailstock - Type - Mechatronic - - Number of tool stations (place-encoded) - number - 50/100/150/200//36/72/108/144 - 50/100/150/200//36/72/108/144 Control SIEMENS - Type - SINUMERIK 840D sl - SINUMERIK 840D sl The standard tool interface High coolant pressure High coolant pressure for optimised chip breakage Coolant pressure below 150 bar – High Pressure Coolant (HPC) Coolant pressure between 150 and 350 bar – Ultra-High Pressure Coolant (UHPC)
