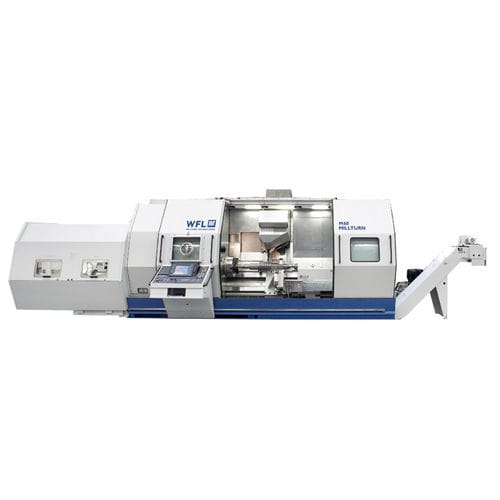

CNC milling machine M60

horizontalfor aeronautics5-axis or more

Anyone who wishes to stay ahead in the market must react quickly and in a flexible manner to their customers’ requirements. The components that customers require are becoming increasingly complex and therefore more demanding to manufacture. By combining all of the manufacturing steps in a multifunctional MILLTURN turning-boring-milling centre, the requirements of both current and future manufacturing jobs can be fulfilled with the highest level of precision. The possibility of freely interpolating the NC axes B, C, X, Y and Z offers the user an incomparable range of technologies. Complete machining without manual intervention, by means of turning, drilling, milling, deep hole drilling, internal and external gear cutting, turn-milling, circular milling and automatic workpiece measurement to enable compliance with the tightest of tolerances. Compensation of thermal influences is also provided for. Any geometric profile can be efficiently machined with the maximum level of precision. There are absolutely no limits when it comes to workpiece complexity. Its multifunctionality is simply ingenious. Highlights at a glance Compact design of the bottom slides (favourable for short parts) Individual clamping solutions Automatic coolant docking Turning-boring-milling unit with integrated measuring probe Workpiece transfer Tool change in a position of your choice Nominal center distancea - mm - 1000/2000/3000/4500 - 2000/3000 - 1000/2000/3000/4500 Swing - ø over Top slide - mm - 690 - 690 - 830 Max. Turning- ø between centers - mm - 690(610) - - - 830(760) Max. torque, Turning spindle 100% duty cycle - Nm - 1830/2748 - 1830/2748 // 1830 - 2318/2748
