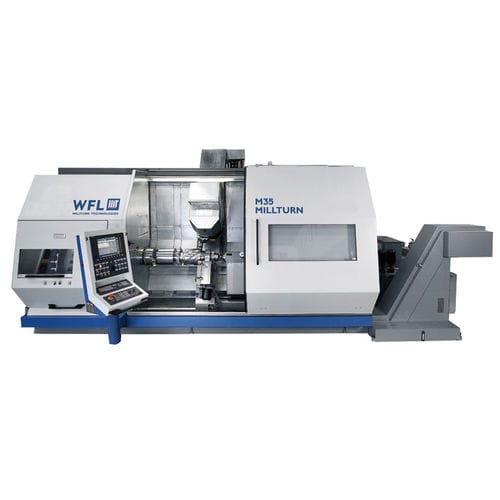

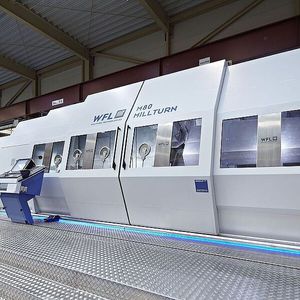

CNC milling machine M35

horizontalfor aeronautics4-axis

The multifunctional turning-boring-milling centers M30/M35 and M30-G/M35-G allow complete machining of complex shafts and chuck parts with a swing of up to 520mm and machining lengths of up to 2000mm. It can thus function as a lathe, a 5-axes machining centre and if needed as a gear-cutting or deep-hole drilling machine. Highlights at a glance 80 bar coolant pressure Inprocess measuring Workpiece transfer 6 side machining Nominal center distance - mm - 2000 - 1800(1680) Swing - ø over Top slide - mm - 520 - 520 Max. Turning- ø between centers - mm - 520 - 520 Max. torque, Turning spindle 40% (100%) duty cycle - Nm - 630(550)/1600(1100) - 630(550)/1600(1100)//630(550) Max. spindle speed, Turning spindle - min-1 - 4000/3300 - 4000/3300//4000 Max. torque, Milling spindle 40% (100%) duty cycle - Nm - 284(233)/213(175) - 284(233)/213(175) Max. spindle speed, Milling spindle - min-1 - 9000/12000/* - 9000/12000/* Swiveling angle B - axis - degree - -110...+110 - -110...+110 Tailstock - type - Mechatronic - - Tool magazine - number - 40/80/120 - 40/80/120 Control SIEMENS - type - SINUMERIK 840D sl - SINUMERIK 840D sl The tool magazine - disc instead of chain magazine Tools up to 15 kg Set up time parallel to machining Max. tool weight: 15 kg Intelligent tool management User-friendly software functions Simple and logical menu navigation Tool corrections automatically converted by the control system Cleanliness as standard Dripping coolant returned Special bed design for perfect chip flow Chip conveyor extended to the magazine area for absolute cleanliness
