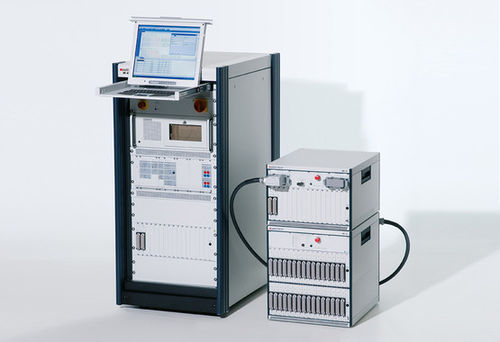

Cable tester W 454

aeronauticalcompact

THE MODULAR AND FLEXIBLE HIGH VOLTAGE TESTER The W 454 Cable Tester and Functional Tester offers high voltages up to 2,250 VDC / 1,500 VAC and current levels up to 3 A to test cables, cable harnesses, harnesses and components for example in the aerospace industry, in medical technology industry and in the railway industry. This test system allows for continuity tests in the Milli-Ohm range, insulation measurements in the Giga-Ohm range as well as measurement of components like resistors, capacitors, inductors and relays. High performance for a broad range of applications Almost unlimited number of test points in a distributed matrix Modular system architecture for an optimized adaptation to the test requirements Programmable power-/current supplies with up to 3 A and up to 2,250 VDC / 1,500 VAC Various generators for high current applications up to 25 A available External generators for functional tests with up to 125 VDC / 250 VAC capable of being integrated Exact resistance measurement from 3 mOhm Up to 500,000 test points possible Efficient ETE 454 expansion units with external electricity supply in various sizes and types Compact, weight-optimized matrix cases allow for an operation according to DIN EN 2283 (Testing of aircraft wiring) inside the aircraft Short adapter cables Simplified adaption of the unit under test (UUT) Improved work safety Enhanced measurement precision compared to long adapter cables Flexible equipment with test point modules of different specifications to enable a cost-optimized configuration Hybrid modules where the test points can be used per test step either as test points or as power points to switch external voltages
