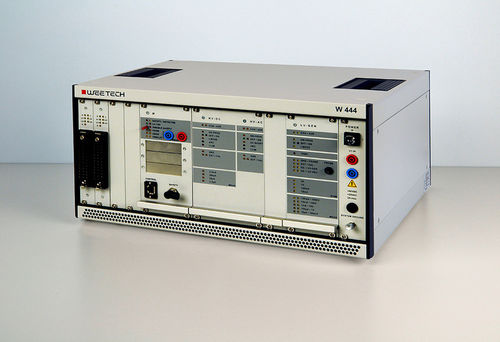

Cable tester W 444

aeronauticalportablecompact

THE COMPACT ENTRY INTO THE HIGH VOLTAGE TEST The W 444 Cable Tester and Functional Tester offers an economic entry into the class of high voltage testers. Voltages up to 2,250 VDC / 1,500 VAC and currents up to 3 A enable the testing of safety-related cables and harnesses as required above all in the aerospace industry, the railway industry as well as the automotive industry. The W 444 Test Device can be configured in its compact, portable 19-inch cabinet for a wide variety of individual applications. It offers up to 1,280 test points. High voltages up to 2,250 VDC in a compact, portable system Economic entry into the High-End Test High voltages up to 2,250 VDC / 1,500 VAC Non-hazardous according to DIN EN 61010 because of current limitation Programmable current source up to 3 A Depending on the model up to 265 or 1,280 test points Portable 19-inches cabinet Functional test for voltages that are not dangerous to touch Internal / external generators up to 25 VAC / 60 VDC connectable for the functional test RLC meter to measure user-defined combinations of resistance (R), inductance (L) and capacity (C) with programmable frequencies Accurate resistance measurement from 3 mOhm through four terminal measurement Flexible setting of test point cards with different voltage specifications for an economic configuration Convenient Autoprog function: connections and networks of a golden sample can be thread in automatically and imported to the PC for further processing Easy development of the test program on a standard PC Integration into customer-specific ERP* systems
