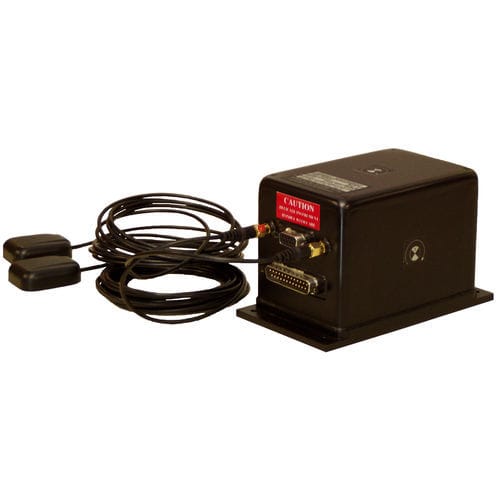

MEMS inertial system DMS-SGP02

with integrated dual-antenna GPS

The DMS-SGP02 is equipped with a dual antenna GPS system, so it provides a GPS heading reference signal even while the unit is stationary. Features: Solid State, Strapdown System GPS Heading Reference Latitude, Longitude, Altitude Output Low Cost Rugged, High Reliability Vibration Resistant Analog and RS-232 Serial Outputs One Year Limited Warranty Engineering Support The DMS-SGP02 is a miniaturized version of the DMS-EGP02. To allow for a smaller package, the DMS-SGP02 uses our S series MEMS rate gyro. The DMS may be used in almost any application where triaxial angular rate and acceleration data is required. This inertial sensor provides both angular rate and acceleration outputs in analog and digital formats. The DMS features six accelerometer outputs. The X, Y, and Z axis outputs represent the accelerations in the plane of the vehicle body, while the second set of three outputs measure the acceleration aligned with an earth-level coordinate system. This allows forward and lateral acceleration measurements that are essentially free of gravity influences. The triaxial sensor set allows software alignment of sensors, greatly reducing any alignment errors. The serial interface is highly configurable and provides access to almost all operational parameters. The DMS-SGP02 is designed for vehicle applications where accurate heading is required, but a magnetic compass is infeasible. This sensor is equipped with a dual GPS antenna system that provides heading data even when the vehicle is not is motion. The addition of the GPS antennas also gives vehicle velocity data to the DMS which enhances the unit’s performance during highly dynamic maneuvers such as sharp turns.
