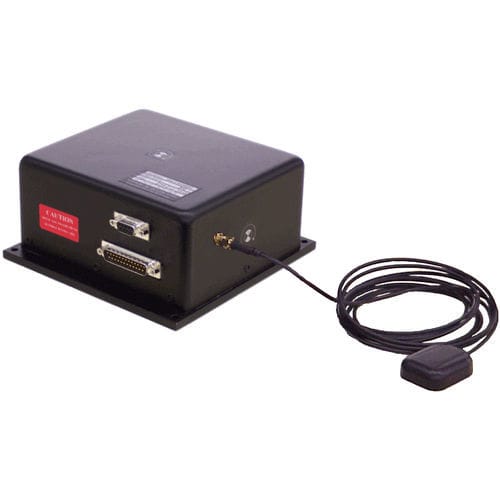

AHRS inertial system DMS-EGP01

with integrated GPS

The DMS-EGP01 is a higher accuracy single antenna GPS enabled AHRS. It uses gyros with lower bias and noise characteristics for more accurate attitude outputs. Features: Solid State, Strapdown System GPS Velocity Data Latitude, Longitude, Altitude Output Low Cost Rugged, High Reliability Vibration Resistant Analog and RS-232 Serial Outputs Two Year Limited Warranty Engineering Support Description The DMS-EGP01 is used primarily in vehicle applications to integrate the features of a DMS-E604 and a velocity sensor into one unit. This sensor is equipped with a single GPS antenna that provides vehicle velocity data to the DMS. This data enhances the unit’s performance during highly dynamic maneuvers such as sharp turns and also makes this inertial gyro sensor a more complete system since it does not require velocity information to be supplied from an external sensor. The DMS-EGP01 is typically used in automotive testing and vehicle dynamics applications. This sensor operates as an enhanced DMS-E604. The GPS antenna provides the DMS with a velocity signal, and also transmits heading data while in motion.
