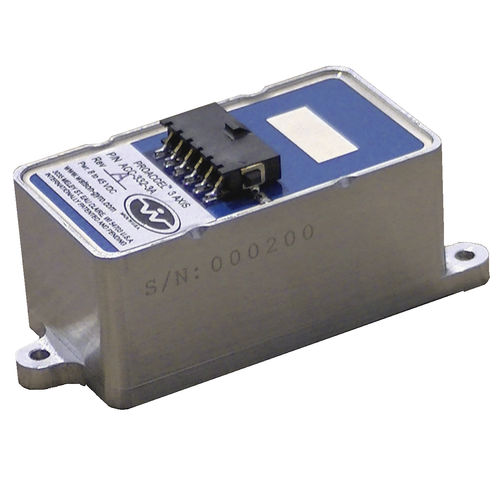

Accelerometer without display ProAccel®

triaxialMEMSanalog

Excellent performance Accurate in severe environments Rugged Wide bandwidth Stable CE Certified High reliability Two-year warranty Description The best description of the ProAccel® triaxial accelerometer is ACCURACY. Scale factor, bias and alignment have all been optimized far beyond the performance of the usual MEMS accelerometer. There is no better triaxial accelerometer for instrumentation, stabilization and control applications. Features that are standard for the ProAccel® include available ranges up to 10g’s, internal power regulation for power input between 8 volts and 45 volts, EMI and RFI protection, and a case mounted connector. Specifications Acceleration Range: X, Y, Z - ±5g (Typical) - See table below Analog Scale Factor: - 1 V/g (Typical) - See table below Scale Factor Accuracy: - 0.2% - At constant room temp Scale Factor Temp Coefficient: - 0.5% - Over temp range Bias: - < 6mg - At room temperature Bias: Over Temp Range - <10mg Non-Linearity: - <0.1% - Full scale range Noise: - 1.5mg rms - 1 Hz to 100 Hz Environmental Temperature: Operating - -40°C to 85°C Temperature: Storage - -55°C to 85°C Vibration: Operating - 5g rms - 20 Hz to 2 KHz Vibration: Survival - 10g rms - 20 Hz to 2 KHz Shock: Survival - 500g - 10mS ½ sine wave
