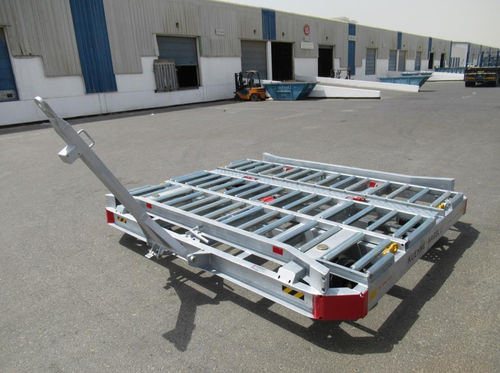

Container dolly 48R

for ULDpallet2-axle

To transport pallets and containers. Pallet sizes: 125x96, 125x88, 108x88 ULD sizes: 2xLD3, 2xLDl, LD6, LDI 1 Construction of this dolly combines strength and durability. Designed to tow in train. Materials used are of the highest quality and ail componcnts are easily maintained or replaced with minimum effort. No spécial tools required. CHASSIS Châssis size: 3,020mm (119”) x 3,400mm (134”) One piecc welded construction with outer walls from high grade steel (200x75 channel) to provide a robust structure which is capable of withstanding reasonable collision impacts. TOP DECK 3 lane roller dcck with pallets feeding on narrow edge. Loading height of 508mm (20”). Central walkway (anti-slip). Lift up stops to retain pallets. Rollers are 625mm x 63mm in diameter with 3.25mm wall. Hexagon shafts and sealed bearings. Zinc platcd finish. UNDERCARRIAGE FRONT Swivel castor assemblics with twin wheels on rocking axles. Axles have taper bearing hubs with 5 stud fixings REAR Fixed castor assemblics with twin wheels on rocking axles. Axles have taper bearing hubs with 5 stud fixings, expanding caliper brake drums. 8 wheels fïtted with 4.00 x 8/3.75 solid rubber tyres. BRAKES Park brake operates on rear wheels and is actuated by raising towbar. Pivoting towbar with 76mm (3”) profiled eye. Mounted on wide i edge of dolly. Spring loaded rear tow hitch.
