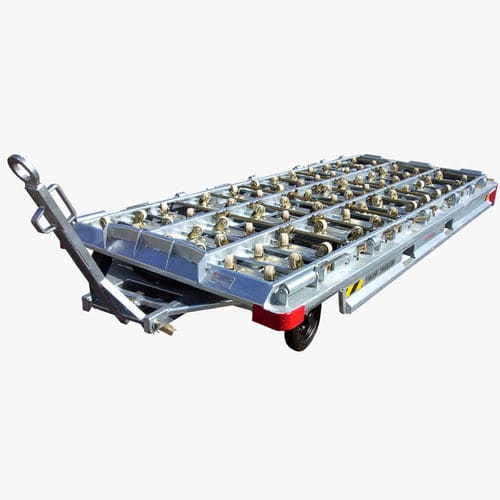

Container dolly CD72

for ULD2-axlefor air cargo

To handle ail narrow base ULD Carries Quantity 2: LDI, LD2, LD3 Carries Quantity 1: LD4, LD6, LD8, LDI 1, AKH Facility to rotate container on deck. Simple stops to retain containers, no levers, cables, foot pcdals, etc. to maintain. Overall lightweight construction allows for one man to mancuver easily. Designed and built to a high spécification. Loading over sides and rear. Favourable to operate in baggage handling halls. CHASSIS Châssis size: 4,015mm x 1,730mm (158” x 68”) One piecc welded fabrication, outer walls foldcd from high grade steel to provide a light but robust construction ablc to withstand reasonable collision impacts. Fork pockcts in side walls for case of maintenance. UNDERCARR1AGE 2 solid beam axles, 4 wheels fïtted with 4.00 x 75 x 8 solid rubber cushion tyres. Front axle mounted through 850mm bail bearing tumtable. Wheel base 2,820, Wheel track 1,350. BRAKES Parking break to front wheel hubs operated by raising towbar to upright position or lowering to ground. TOP DECK Inverted castors with lead on rollers to sides and rear. Loading height 508mm (20”). Lift up stops to retain containers at sides. Spring loaded stops retain containers at ends. Tow bar fïtted with 76mm eye. Spring retained jaw and pin rear hitch. FINISH Hot dip galvanized to ISO 1461. Day glow paint corners. Reflective hazard stripes to sides and rear.
