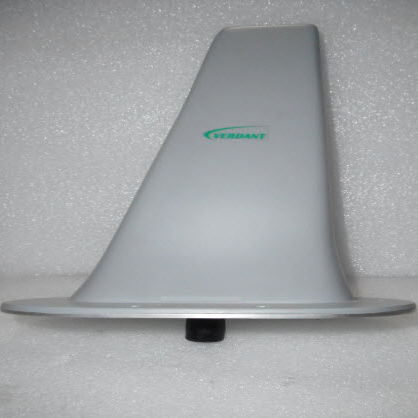

Aircraft antenna JU 180 T1G

for droneUHFomnidirectional

JU 180 T1G is a Monopole antenna designed to work in frequency band, 465 MHz -510 MHz . This UHF omni antenna can be used for communication applications such as UHF command link. These antennas are designed as low profile, low drag blade antennas with excellent aerodynamic properties. The radiating element is encased in a single piece glass fibre reinforced epoxy radome. This antenna is ideally suited for UAV’s . Tests in accordance with MIL 810 F. UHF Blade Antenna Electrical Frequency Range465 MHz -510 MHz VSWR≤ 2.0:1 PolarizationVertical Radiation PatternOmnidirectional in azimuth Impedance RF50 Ω Static ProtectionDC Grounded Power RFReceive Only Mechanical Weight225 grams (Max) Height180±1.2 mm (Max) MaterialGlass Epoxy FinishSatin Gray ConnectorTNC (F) Environmental Temperature-55º C to +85º C Altitude32,000 feet
