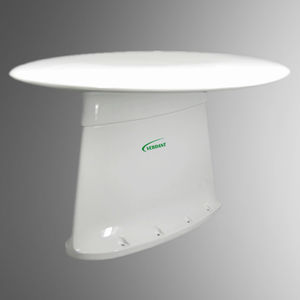

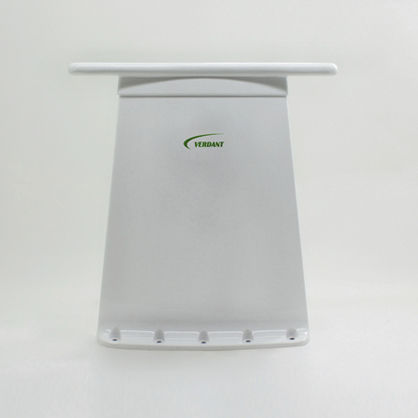

Aircraft antenna JD 300 D02

for droneVHFUHF

JD 300 D02 is a top loaded broad band (VHF/UHF) low profile blade antenna with a wide base designed to be used with multi function communication systems. These antennas are designed as low profile, low drag blade antennas ideally suited for fixed wing aircrafts, helicopters and UAVs. The fibre reinforced epoxy antenna shell is designed to meet stringent MIL requirements. Tested as per MIL 810 D. V/UHF Blade Antenna Electrical Frequency Range30 MHz - 550 MHz VSWR2.7:1 (max) PolarizationVertical Radiation PatternOmnidirectional in azimuth Impedance RF50 Ω Nominal Static ProtectionDC Grounded Power RF35 W CW Mechanical Weight1300 grams (max) Height305 mm (max) MaterialGlass Epoxy FinishGloss ConnectorN Female ColorWhite Environmental Temperature-55°C to +90°C Altitude50,000 feet
