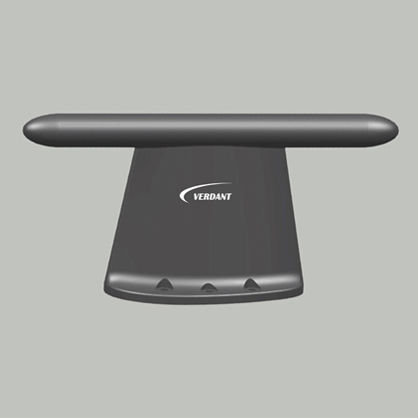

Aircraft antenna JD 120 T1B
for droneVHFUHF

aircraft antenna
aircraft antenna
aircraft antenna
aircraft antenna
Add to favorites
Compare this product


Characteristics

Applications
for aircraft, for drone
Type
VHF, UHF
Other characteristics
blade

Description

JD 120 T1B is a top loaded wideband (VHF/UHF) blade antenna to be used with RF communication systems. These antennas are designed as low profile, low drag blade antennas ideally suited for UAV/Helicopter/Subsonic Jet Aircraft. The fibre reinforced epoxy antenna shell is designed to meet stringent MIL requirements. V/UHF Top Loaded Blade Antenna Electrical Frequency Range30 MHz - 512 MHz VSWR3:1 (30 MHz - 100 MHz) VSWR2.5:1 (100 MHz - 225 MHz) VSWR2:1 (225 MHz - 512 MHz) PolarizationVertical Radiation PatternOmnidirectional in azimuth Impedance RF50 Ω (Nominal) Static ProtectionDC Grounded Power RF50 W Mechanical Weight450 gram (max) Height120 mm (max) MaterialGlass Epoxy FinishGloss ConnectorTNC Female ColorBlack Environmental Temperature-55°C to +90°C Altitude50,000 feet
