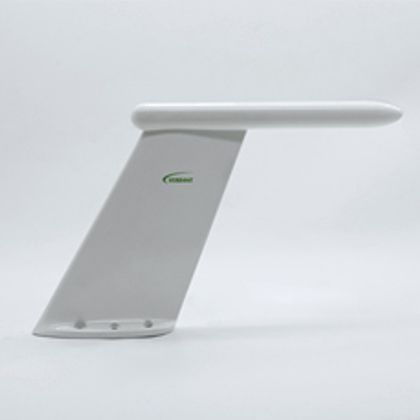

Aircraft antenna JH 2Y-1

VHFbroadbandblade

JH 2Y-1 is a VHF broadband antenna designed to be used with Automatic Identification Systems (AIS) for maritime applications. These antennas are designed as low profile, low drag blade antennas with excellent aerodynamic properties ideally suited for high performance military aircrafts. The radiating element is encased in a single piece glass fibre reinforced epoxy shell. This antenna is qualified and suitable for helicopters and subsonic aircrafts. Tested in accordance with MIL 810 F VHF Stub Antenna Electrical Frequency Range160 MHz - 165 MHz VSWR2.0:1 (Nom.) PolarizationVertical Radiation PatternOmni-directional in azimuth Impedance RF50 Ω Static ProtectionDC Grounded Power RF35 W CW Mechanical Weight420 ± 30 grams Height204 mm (Max) MaterialGlass Epoxy FinishGloss ConnectorN Type Female Environmental Temperature-55°C to +90°C Altitude60,000 feet
