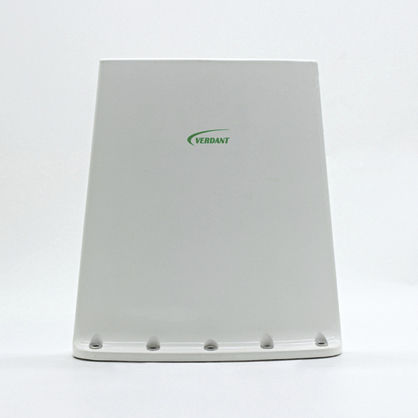

Helicopter antenna JD 201UHFbroadbandblade
Add to favorites
Compare this product
Characteristics
- Applications
- for helicopter
- Type
- UHF
- Other characteristics
- broadband, blade
Description
JD 201 is a broadband low profile antenna designed to be used with multi-function communication & DF systems. These antennas are designed as streamlined low drag blade antennas ideally suited for high speed aircrafts. The antenna radome is a single piece glass fibre reinforced epoxy shell designed to meet stringent MIL standard requirements. This antenna is suitable for helicopters as well as supersonic aircraft.
Tested as per MIL 810 F.
V/UHF Blade Antenna
Electrical
Frequency Range110 MHz - 400 MHz
VSWR2.5:1 (max)
PolarizationVertical
Radiation PatternOmnidirectional in azimuth
Impedance RF50 Ω Nominal
Static ProtectionDC Grounded
Power RF35 W
Mechanical
Weight1000 grams (max)
Height251 mm (max)
MaterialGlass Epoxy
FinishGloss
ConnectorN Type
ColorWhite
Environmental
Temperature-55°C to +90°C
Altitude60,000 feet
