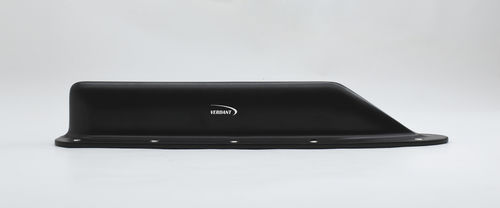

Aircraft antenna JH 60ILS
Add to favorites
Compare this product
Characteristics
- Applications
- for aircraft
- Type
- ILS
Description
JH 60 Marker Beacon antenna is designed to be used with ILS systems. The radiating element is encased in a single piece glass fibre reinforced epoxy radome. These antennas are low profile, low drag antennas designed to withstand severe environmental conditions ideally suited for high performance supersonic aircraft.
Tested as per MIL 810 F.
Marker Beacon Antenna
Electrical
Frequency Range75 ° 0.15 MHz
VSWR1.5:1 (max)
PolarizationLinear / Horizontal
Radiation PatternPartially Downward
Impedance RF50 Ω Nominal
Static ProtectionDC Grounded
Power RFReceive Only
Mechanical
Weight650 grams (max)
Height66 mm (max)
MaterialGlass Epoxy
FinishMatt
ConnectorN Female
ColorBlack
Environmental
Temperature-55°C to +90°C
Altitude60,000 feet
