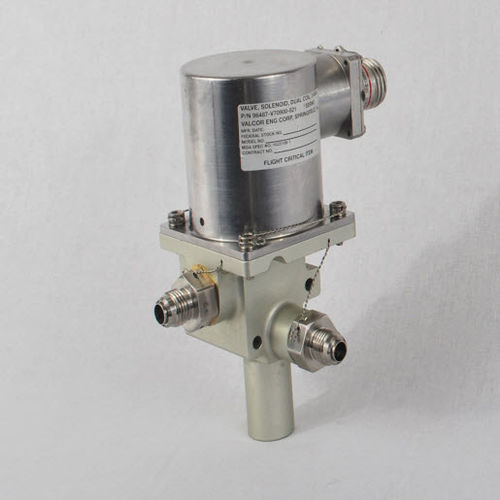

Aircraft solenoid valve V70900

for fuelfor gas3-way

V70900 are direct acting 3-way/2 position solenoid valves designed to control high pressures of noncorrosive and corrosive gases and liquids. Their compact size and low weight allow these valves to be used in the tightest space available. They are wellsuited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. V70900 valves are usable in a normally closed or normally open configuration, as well for use as a diverter or selector. APPLICATION V70900 valves are typically used with fuel, hydraulic fluid and non-corrosive gases and liquids that require a high-pressure 3-way valve. They are also suitable for use in piloting higher flow or higher pressure valves or to actuate single-acting cylinders. FEATURES • Flow Rate: Cv=1.18; Cd=0.65 • Leak Rate: Internal is 0 cc/min liquid, 10 cc/hr gas. • Current: 2.0 amps at 28 VDC and 70°F; intermittent duty • Electrical Connection: MS3102R-10SL-4P standard • Wetted Materials: 302, 303, 430F, Aluminum, Fluorosilicone • 1/4”, 3/8” and 1/2” OD line porting • Fully customizable to your application
