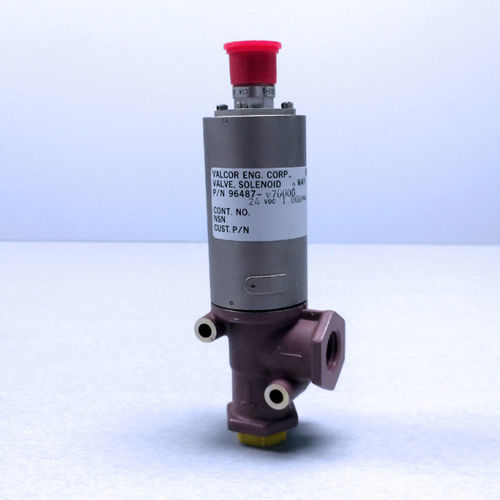

Aircraft solenoid valve V70000

for gas2-waynormally closed

V70000 are direct acting solenoid valves with a poppet. They are designed for use with aviation fuels, non-corrosive gases, and non-aromatic hydraulic fluids, and are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. The compact size and low weight allow these valves to be used in the tightest space available. They utilize an elastomeric poppet seal that provides tight shut-off and long service life without leaking. V7000 valves do not require system pressure to operate, and are available in a normally closed or normally open configuration. APPLICATION V70000 valves are typically used on aircraft pneumatic, fuel, and hydraulic systems. A high temperature option enables them for use with hot engine bleed air. FEATURES • Flow Rate: Cv 0.78, 1.70 and 4.15; Cd=0.65 • Leak Rate: Internal is 0 cc/min liquid, 4 cc/min - - • Wetted Materials: Aluminum, CRES 303, 430F, 302, Fluorosilicone • 3/8”, 1/2”, and 3/4” OD line ports • Inline or right-angle porting • Weight: 1.3 lbs. to 2.0 lbs. • Self-cleaning, wear compensating, seal design • Fully customizable to your application
