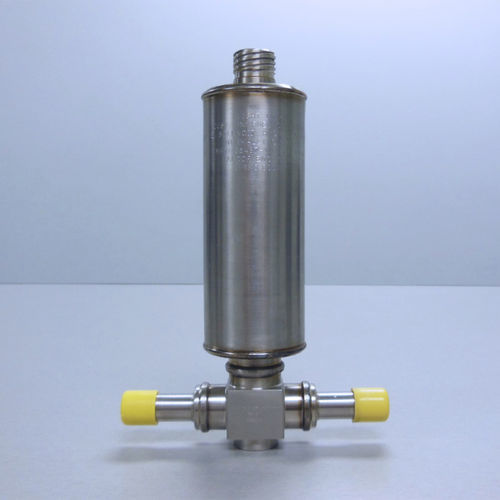

Aircraft solenoid valve V44700

for gas2-waynormally closed

V44700 valves are designed to handle hot gases and corrosive liquids, as well as cryogenic gases and liquids. Their compact size and low weight allow these valves to be used in the tightest space available. They utilize Valcor’s proprietary floating seal technology which provides tight shut-off, long service life, and the ability to handle particulates in the fluid stream without leaking. These valves are direct acting, and do not require system pressure to operate. Their allwelded construction provides a leak-proof external seal. They are well-suited for the extreme vibration, temperature, and cycle life requirements found in the most severe aircraft operating conditions. APPLICATION V44700 valves are widely used in applications that include hot gas, cryogenic gases or liquids, and corrosive or inert gases and liquids. They are particularly suitable for low pressure drop applications, where particulate in the process fluid may be present. FEATURES • Flow Rate: Cv: 0.19, 1.50 and 1.85; Cd=0.65 • Weight: 1.5 lbs to 2.4 lbs., • 1/4”, 3/8”, and 1/2” OD Line • All-welded pressure vessel ensures a leak-free pressure boundary seal • Self-cleaning, wear compensating floating seal design
