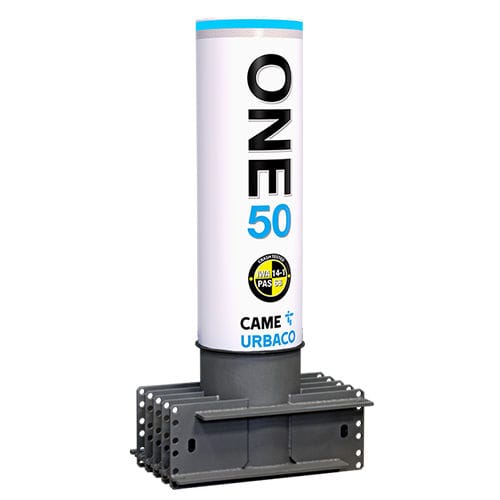

A single high-security ONE50EVO bollard can withstand the consecutive impacts of two 7,5T trucks travelling at 80 km/h.
A single high-security ONE50EVO fixed bollard can withstand the impact of one truck travelling at 80 km/h.
The ONE50EVO high-security fixed bollard is designed to protect strategic access points and sensitive sites from terrorist attacks. The crash test demonstrated the strength and high level of security of the ONE50EVO fixed bollard.
Urbaco is the first manufacturer in the world to have performed two crash tests on the same bollard according to the latest international standards.
The crash tests demonstrated the strength and high level of security of the ONE50EVO bollard, which remains operational even after having stopped several « ramming » trucks.
Use:
Permanent access closure
Material:
High-strength steel
Display device:
Class II reflective band (white)
Illuminated ring:
Leds (Red in Standard, White in Option)
Dimensions (mm):
Ø325 x H1000 (Above ground)
Standards:
In compliance with the French PMR decree
Design:
CYLINDER
CYLINDER INOX
CUSTOMISABLE
Certified: IWA 14-1:2013 Bollard V/7200[N3C]/80/90:5,9*;
Impact energy: 1 763,2 kJ
Certified: PAS68:2013 Bollard V/7500[N3]/80/90:5,6/27,2*;
Impact energy: 1 763,2 kJ
