X-ray scanner MXV DV

for airportbaggagewith conveyor

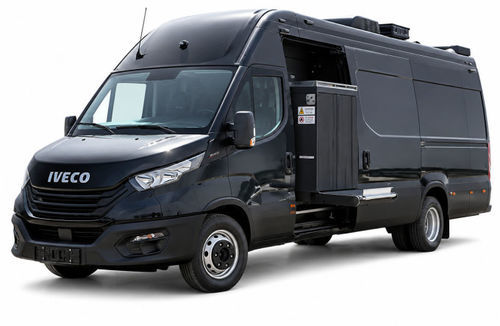

MXV DV | MODULAR X-RAY DUAL-VIEW VAN Flexible Mobile Screening Solution for Airports The MXV DV | DUAL-VIEW X-RAY VAN is the first mobile and dual-view X-ray scanner with a tunnel opening of 100×100 cm. Normal X-ray screening vans provide in most cases only a single view projection. To detect even the best concealed threats and contraband, a dual-view projection is a must, as it provides an X-ray image of the scanned object from two different views. Aside from its integrated dual-view X-ray scanner, the MXV DV offers several other advantages, such as a professional video security surveillance system, inbuilt GPS, a hydraulic leveling system and more. Therefore, the MXV DV comes with a lot of additional features and is 100% assembled in Germany. The integrated 100100 DVM X-ray system, with a tunnel opening of 1010×1005 mm, a steel penetration of 40 mm, bidirectional scanning and many more features, and provides clear and sharp images of the screened object and is completely certified by the German TÜV according to German X-ray radiation protection law (RöV). KEY FEATURES: • Provides X-ray images of scanned objects in two projections (vertical downward and horizontal). • Produces high quality X-ray images with 3% contrast sensitivity, up to 20 AWG copper wire detection and 3 mm spatial resolution • The integrated BV 10100DVM has an automatic color coding for materials separation (3+1 colors or 7+1 colors) feature allowing distinguishing between organic, nonorganic and metal materials. • A 360° surveillance coverage baggage & person monitoring all forensically proven recorded on specially developed mobile recorder, with mobile certified cameras.
