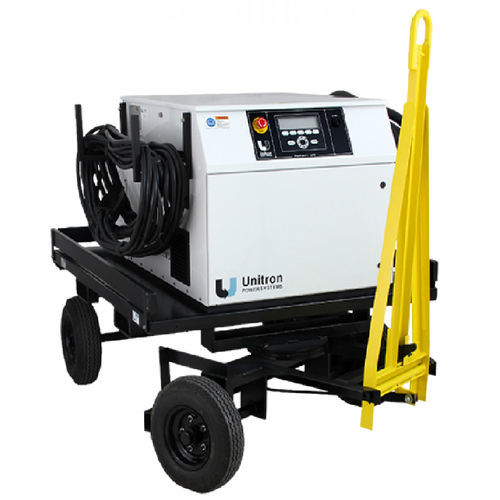

Mobile ground power unit

fixedbridge-mountedfor aircraft

Since its beginning in 1960, Unitron has specialized in the design and development of reliable solid-state power systems. Through an innovative design, advanced self-diagnostic systems (BITE) and modular construction, Unitron products assure maximum power availability and minimal repair time. The PwrKart Series includes 115/200VAC, 400Hz, 28VDC, and 270VDC converters designed to provide aircraft ground power in support of hangar and ramp aircraft maintenance activities, and on flight lines when aircraft engines are secured. The 400Hz towable PwrKart provides up to 180kVA output power and is designed to service the largest commercial and military aircraft on the market today. The dual outputs provided can be single source controlled, be individually voltage regulated and line drop compensated, and configured for partial redundancy. These 400Hz Ground Power Units (GPUs) range from 20kVA to 180kVA. Dependent upon rating, these units are available in mobile, towable, fixed and bridge-mounted configurations. STANDARD FEATURES: ■ IP55 ■ Certified to UL 1012 ■ 3 Phase, 380-480VAC input ■ Indoor/Outdoor (Hangar/Ramp) Use ■ ≤ 5% Input Current Distortion at max load ■ Automatic Input Line Monitoring ■ Advanced Integrated Display (AID™) Console ■ 8000 Event Log / Diagnostics ■ TCP/IP/Ethernet interface (Modbus) ■ Internal Communication Ports - USB, RJ45 (ETHERNET), RS485 (Modbus), & RS232 ■ External Communication Port – USB ■ 15% Automatic Line Drop Compensation ■ Emergency Power “OFF” Switch ■ 18-Inch Hazard Area Clearance ■ I/O Voltage, Current, & Frequency Monitoring ■ Elapsed Time Meter ■ Sleep Mode ■ Front Panel Voltage Adjust ■ Front Panel Summary Fault Indicators
