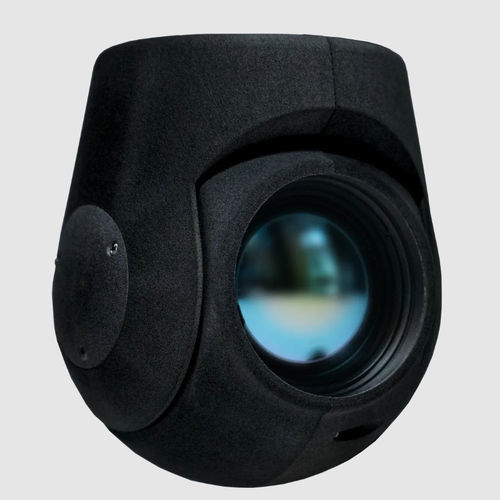

2-axis gimbal USG-231T

for dronehigh-precisionlightweight

Long-Range Gimbal for Operations in the Dark. The USG-231T is a compact and lightweight system designed for night surveillance, inspection, or search operations in no- or low visibility conditions. Best suitable for Fixed Wing and VTOL platforms. Object Tracking Get real-time data on the movement of your targets. The system automatically tracks people, vehicles, or any other objects visible in the thermal spectrum. Digital Stabilization Clear, stable, high-def video allows you to see the area in more detail and identify objects more accurately. Flexible Display Modes Customize the system to your needs: choose different color palettes tailored to your specific mission. State-of-the-Art Optics USG-231T thermal camera features a 55 mm LWIR module with a resolution of 640×512. Aperture f/1,0 Unlike standard solutions with f/1.6 apertures, the USG-231T features a maximum aperture of f/1.0. Increased sensitivity provides greater image quality. Pixel Pitch 12 µm The uncooled 12 µm VOx imager offers a narrower field of view. The smaller pixel pitch increases the tracking range by 40% compared to 17 µm imagers. Additionally, the highly sensitive sensor detects temperature differences as small as ±0.05 °C. Field of View FoV: 8.0° The VOx core, coupled with a high-precision 55 mm lens, offers a horizontal field of view of 8°, enabling the camera to see great distances. Additionally, it is equipped with a 4x digital zoom to further extend its range. Targeting at Distances up to 5 km An uncooled VOx microbolometer, a high-precision 55 mm lens, and an extra-wide ƒ/1.0 aperture. This combination allows operators to track any thermal targets at distances up to 5 km.
