Cross parachute BACKUP QX series
reserverescuesingle place

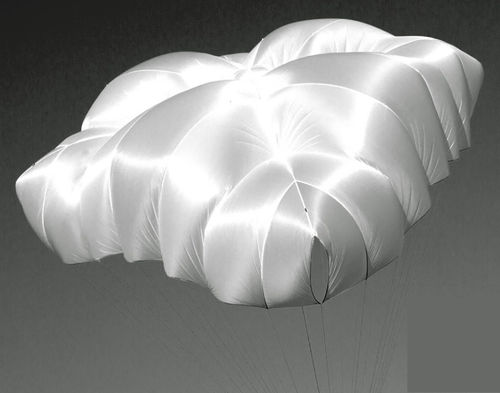

Cross parachute - BACKUP QX series - U-Turn GmbH - reserve / rescue / single place
Cross parachute - BACKUP QX series - U-Turn GmbH - reserve / rescue / single place
Add to favorites
Compare this product


Characteristics

Applications
cross, rescue, reserve
Maximum passengers
single place
Wing surface

40.2 m², 45.2 m²
(432.7 ft², 486.5 ft²)

Maximum load

Max.: 160 kg
(353 lb)

Min.: 72 kg
(159 lb)

Weight

1.46 kg, 1.68 kg
(3.22 lb, 3.7 lb)

Description

With the BACKUP QX series, U-Turn presents the innovation of the cross cap. The new surface division prevents the dangerous scissor position and immediately stabilises the pendulum moment itself. We therefore call it intelligent quarter stabilisation. In addition, the four-part division ensures minimal sinking with minimal surface area and immediate opening times. In combination with the automatic pendulum stabilisation, the lightweight rescuer ensures impressive overall values. The second sink test times after water landing of 5.1 m/s are still within the certification range, but with an additional 10 kilos of weight for each of the specified sizes. U-Turn strives to maximise safety and, as a pioneer of innovation, is also breaking new ground with the BACKUP. Thanks to the use of the latest high-tech materials and the new quarter construction, the BACKUP QX is a lightweight with plenty of surface area. This is crucial for the sink rate and pendulum-free flight behaviour. Efficient air outlets - in conjunction with the pre-tensioning at the base edge using the Rapid Inflation System (RIS) - make up for the surface area in terms of inflation behaviour and opening time. This has enabled the rescue concept to undercut the strict EN and LTF certification standards with a payload of 10 kilos. State-of-the-art manufacturing processes are also used during processing in accordance with the highest safety standards. This is the result of many years of production expertise from traditional parachute production. The BACKUP QX has EN and LTF approval Backup your life! To make it easier for you to reach for the reserve.
