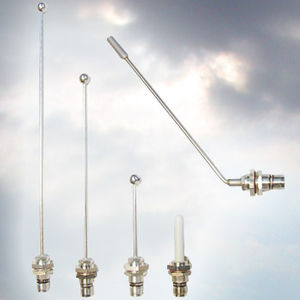

Aircraft antenna AO1712

UHFbroadbandomnidirectional

When mounted above or below an aircraft, the antenna produces an omnidirectional, vertical polarized signal with maximum gain 20° – 30° above the horizon. The reinforced radome allows speeds in excess of mach 2.0. Two different mounting bolt circle patterns are offered: Standard AO1712 mounting: 0.196″ dia drill x 100° csk x .379″ dia, 6 places equally spaced on 2.50″ dia bolt circle. Special Order AO1712-3 mounting: 0.173″ dia drill x 82° csk x .350″ dia, 6 places equally spaced on 2.375″ dia bolt circle. Frequency Range Low (GHz) - 2.000 Frequency Range High (GHz) - 12.000 Frequency Range - >2.0 to 12.0 GHz VSWR - 1.65:1 typical from 3.0 to 9.50 GHz, 2.5:1 max. across the band Gain - +6 dbi Polarization - Vertical Power Handling - >100 Watts Average Impedance - 50 Ohms
