Aircraft antenna AO556 Series

UHFbladeomnidirectional

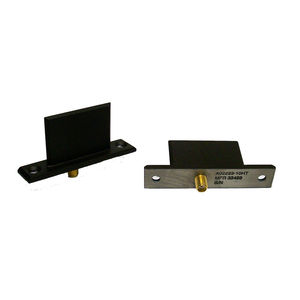

The slotted blade or “bent stub” antenna provides both vertically and horizontally polarized components of radiated energy. This feature fills in the antenna pattern hole typically exhibited by the 1/4 wave stub antenna. The “bent stub” also provides a vertically polarized component when the aircraft is in a steep bank attitude. Scalable to other frequencies for nominal engineering fee. Add suffix letter “S” for stainless steel or “A” for aluminum configuration. GRDCUS Antenna PN AO556-915S, NSN 5985-01-540-3343. Standard Models: frequency 915 ± 10 MHz Frequency 978 ± 10 MHz Frequency 1365 ± 10 MHz Applications Subscale Aerial Targets Data Link Sub System (DLS) Drone Flight Control Systems GRDCUS BQM-34 Frequency - 915 ± 10 MHz - 978 ± 10 MHz - 1365 ± 50 MHz VSWR - 1.5:1 max - 1.5:1 max - 1.5:1 max Gain - Essentially Isotropic - Essentially Isotropic - Essentially Isotropic Radiation Coverage - Essentially Hemispherical - Essentially Hemispherical - Essentially Hemispherical Power Handling - >100 Watts Average - >100 Watts Average - >100 Watts Average Impedance - 50 Ohms - 50 Ohms - 50 Ohms
