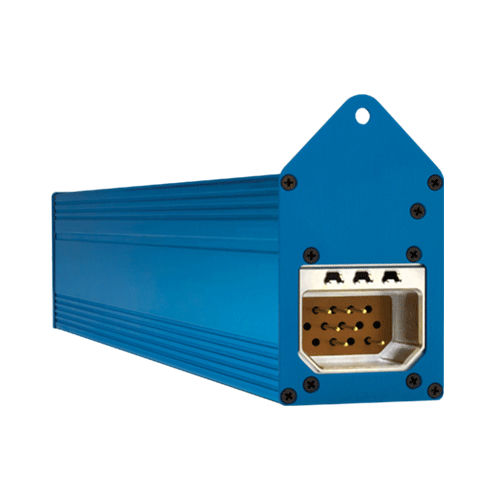

Aircraft power supply TS835 series

DC/DC

The TS835 Series Emergency Power Supply features an advanced NanoPhosphate® lithium-ion cell chemistry that offers distinct advantages over older, lead-acid designs. This includes a 63% weight savings, reduced maintenance costs and an improved 8-year life expectancy. Features 4.5 amp-hour NanoPhosphate® lithium-ion battery Utilizes advanced NanoPhosphate® lithium-ion technology — an energy storage solution with superior safety and abuse tolerance compared to metal oxide lithium-ion chemistries Maintains full charge by recharging during normal flight operations Lightweight — 63% lighter than legacy lead-acid designs Direct replacement for L-3 Avionics/JET PS-835 or PS-855 (same rack mount and connector) Two-year maintenance schedule 8-year (average) life expectancy Part 23 AML STC certified Designed and built in Wichita, Kansas USA Five-year limited warranty FAA TSO Certified Weight - 4.8 lbs — 8 pounds lighter than legacy lead-acid designs Dimensions - 3.1” H x 12.7” L x 2.4” W (approximate) Life Expectancy - 8 years (average) Protection - Factory replaceable fuse Mating Connectors - DPXB13-33S-0001 (MCI P/N 9016600-2 or 9016600-5) Rack Mount Installation - 1/4 ATR rack (MCI P/N 5120-107-C01) Optional Vent Kit - MCI P/N 9017983 Remote Test Switch - Remote-mounted self-test switch required MCI P/N 9017176 or equivalent Case - Anodized aluminum, blue
