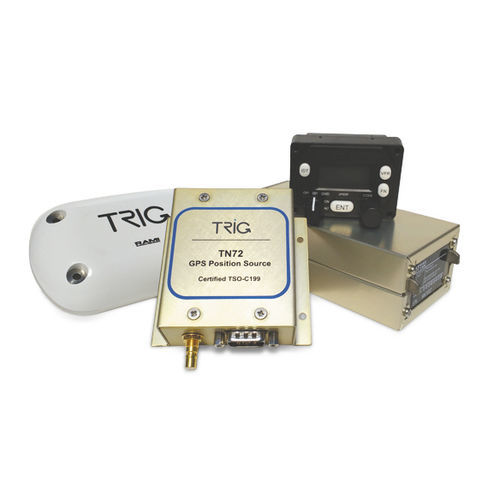

ADS-B receiver TN72

for air trafficfor aircraftwith integrated GPS

If you are looking for a complete Mode S and ADS-B Out system, then you need one of our TN72 Bundles. There are two different TN72 ADS-B Bundles available – choose the one that suits your requirements. TT21/TN72 Conspicuity Bundle – ideal for flight below 15,000 feet where a Class 2 transponder is permissible for Mode S and ADS-B Out. The TN72 and TT21 in combination can be configured to either support TABS (SIL 1) or X configuration (SIL3) in the controller. 1 x TT21 – Mode-S, 1090ES, certified compact transponder (Class 2) 1 x TN72 – certified GPS position source 1 x TA50 – compact antenna with 1m lead and QMA connector (plugs into TN72) TT22/TN72 ADS-B Bundle – select this if you operate a light-sport, experimental or home built aircraft in North America and you wish to be ADS-B Out equipped to fly in 2020 rule ADS-B airspace. This is a FAR 91.227 compliant solution for these particular aircraft types. The FAA require you to have a Class 1 transponder (the TT22). This configuration also best suits high performance aircraft and those operating above 15,000 feet. This kit includes: 1 x TT22 – Mode-S, 1090ES, certified compact transponder (Class 1 required) 1 x TN72 – FAR 91.227 compliant certified GPS position source 1 x TA70 – certified WAAS GPS Antenna It is possible to purchase items separately – please contact your nearest Approved Trig Dealer to make your aircraft ADS-B Out visible and improve your flight safety.
