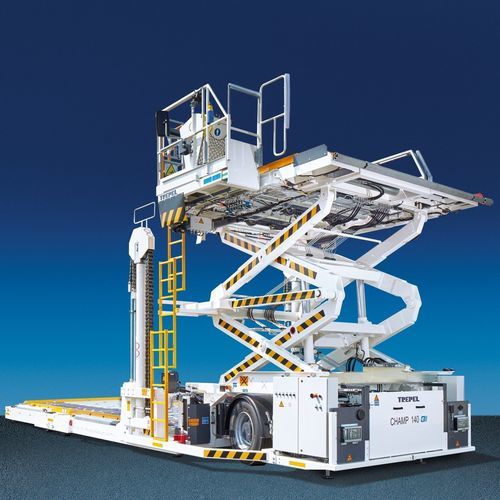

Scissor high loader CHAMP 140e

for cargodieselelectric

With a total propulsion of around 150 kW distributed over 3 asynchronous electric motors dedicated and dimensioned for specific tasks such as driving or lifting, the CHAMP 140e is one of the most effective and versatile electric-powered main deck loaders on the market. Equivalent to its Diesel brother regarding handling and operating, the CHAMP 140e is the perfect emission-free complement for your GSE fleet. Performance Dimensions (L x W x H) 11.400 x 4.400 x 3.900 mm (standard configuration) Lifting height front / main platform 1.900 to 5.600 mm / 485 to 5.600 mm Loading width (between guide rails) 3.272 mm (FPF) / 3.286 mm (MPF) Driving speed 13 km/h Gradability 7 % Turning radius 14.000 mm Design Engine / Propulsion 3 electric motors Drive 60 kW* MPF lifting 60 kW* FPF lifting and operating hydraulic system 36 kW* Traction battery: 400 V liquid-cooled lithium-ion battery Transmission / axles Direct electric drive on front axle Steering Hydraulic power steering Braking system Dual circuit hydraulic brake system, multiple wet disc brakes Stabilisers 6 hydraulically operated stabilisers Conveying system Zink-plated steel rollers for longitudinal transfer, transversal drive units on front platform, hydraulically adjustable guide rails on front platform, side loading and ULD rotation on rear of main platform Hydraulic system Priority valve for steering and brakes circuit, valves with control light Electric system 24V DC, combination of common relays and PLC controllers. Where possible, control logic functions processed by the PLC
