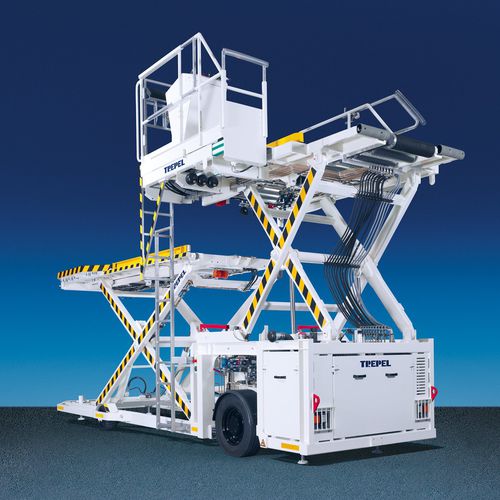

Scissor high loader CHAMP 35e

for cargoelectrichydraulic

The CHAMP 35e, the electric version of the most compact CHAMP 35, offers environment-friendly operation without affecting the performance. The extremely narrow design is ideal to handle all 61” cargo doors at lower deck level and makes it also capable to clear the front and rear doors of the A319. The CHAMP 35e can be fitted with a 375 Ah lead/acid battery. Performance Dimensions (L x W x H) 8.300 x 2.820 x 3.150 mm (standard configuration) Lifting height front / main platform 1.900 to 3.500 mm / 485 to 3.500 mm Loading width (between guide rails) 1.620 mm Driving speed 13 km/h Gradability 5 % Turning radius 7.800 mm Design Engine / Propulsion 80V AC, S2 5 min 20 kW, S2 60 min 17 kW 80V 550 A Inverter, 80V 375 Ah lead battery Transmission / axles Open circuit hydrostatic drive system on front axle Steering Hydraulic power steering Braking system Dual circuit hydraulic multiple wet disc brake, additional spring-loaded emergency parking brake Stabilisers 5 hydraulically operated stabilisers Conveying system Zinc-plated steel rollers for longitudinal transfer, rotating system on rear of main platform, hydraulically adjustable guide rails on front platform Hydraulic system Central hydraulic valve block, valves fitted with control light Electric system 24V, relay controlled
