Scissor high loader CHAMP 200

freightdieselelectric

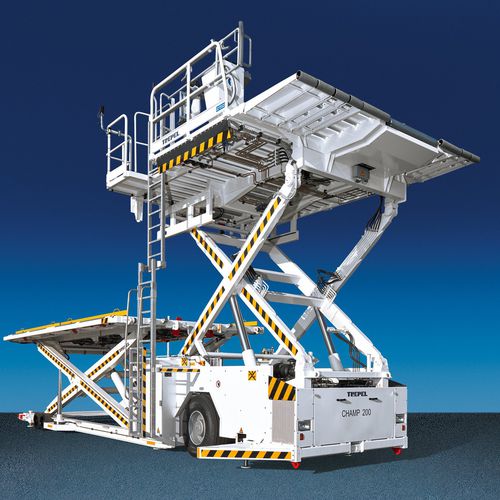

The 20 ton cargo high loader CHAMP 200 can handle all conventional freighters including the IL-76 safe and fast. It is positioned lengthways to the rear cargo door with the front platform directly docked on the door sill. The CHAMP 200’s scissor-integrated cylinders (the only loader without vertical cylinders for lifting/lowering the rear platform) and the low front platform height make the handling of this aircraft easy. During its long career at airports all over the world, the CHAMP 200 has gained the reputation of the unfailing main deck loader. Freight handling with higher reliability. Performance Dimensions (L x W x H) 12.635 x 4.500 x 3.150 mm (standard configuration) Lifting height front / main platform 2.050 to 5.600 mm / 508 to 5.600 mm Loading width (between guide rails) 3.230 mm Driving speed 15 km/h Gradability 5 % Turning radius 13.400 mm Design Engine Deutz 4-cylinder diesel TCD 2012 L04 2V (COM IIIA / EPA-TIER3) Other engines or emission class on request. Transmission / axles Open circuit hydrostatic drive system on steering front axle Steering Hydraulic power steering Braking system Dual circuit hydraulic drum brake, additional spring-loaded emergency parking brake Stabilisers 6 hydraulically operated stabilisers Conveying system Zinc-plated steel rollers for longitudinal transfer, side loading and rotating on rear of main platform, side loading on front of main platform, hydraulically operated stops at rear end of main platform Hydraulic system Central hydraulic valve block, valves fitted with control light, electrically powered hydraulic emergency system to lower platforms and lift stabilisers Electric system 24 V, relay controlled
